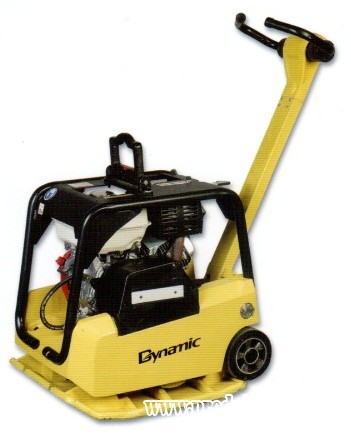

Reversible plate compactors
Dynamic plate compactor serious could be used in the narrow places of the wall, roadside, foundation structure, also can be used for compaction asphalt and concrete. Compared with the domestic market other similar products, Dynamic plate compactor serious is more focused on the practicability and reliability.
- The unique design of electric start-up, even in the severe conditions remain strong and durable
- Diesel power system, more powerful force,better compaction effect;
- Lifting hook ensure easy to delivery in different job site
- Handle hydraulic system for forward & reverse
- Lower maintenance cost and long life time
- Ductile iron base plate for durability
Type ....................................................... DUR 500
Weight (kg).............................................355
Dimension (mm)..................................L965 X W600 X H1370
Plate size (mm)....................................L600 X W890
Centrifugal force (kn)..........................50
Working diameter rpm(hz).................4100 (69)
Speed (m/min)......................................22
Engine.....................................................Air-cooled, 4-cycle, Gasoline
Type ........................................................Honda GX390
Max. output kw(hp)...............................9.6 (13)
Max. speed (rpm).................................3600
Fuel tank (liter)......................................5.5
